The C+H test blocks are particularly suited for billing meter applications, providing a safe and reliable means to test meters, protective relays, and associated equipment without disrupting the normal load circuit. Their flexible terminal arrangements make them adaptable to a wide range of testing requirements in utility and industrial environments.

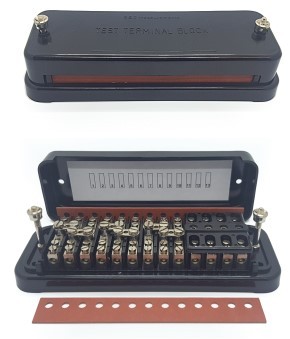

ACTOMKP0023 | 13Way C+H Test Terminal Block
The ACTOM KP0023 Test Terminal Block is used for the testing of a wide range of electrical equipment including meters and protective relays without disturbing the normal load circuit. The terminal arrangements on the test block can be adapted to suit several applications.
These are designed for projection mounting on switchboards or panels, the terminal blocks can be supplied with front or rear connected terminals. The base and cover are robust mouldings of an insulating material. Barriers moulded integrally with the base extend the full width to provide protection against flash-over between terminals. The cover is secured by two knurled nuts that can be sealed against unauthorised access.
Main features:
- Available in two variants, Front (ZR-Q-10 (KP0023-008)) or Rear (ZR-Q-8 (KP0023-010)) connected types.
- The test blocks are rated at 660V and have a current rating of 50A continuous at 50 degrees Celsius.
- All terminals and screws are plated brass.
- Moulded insulating barriers between sets of terminals.
- Link facilities for testing purposes.
- Terminal arrangements cover a wide range of applications.
- 4 Voltage terminals.
- 3 sets of Current terminals with 2 links each.
