Multifunction Meters

A Multifunction Panel Meter is an advanced electrical measuring device used to monitor and display multiple parameters of an electrical system in real time. These meters are commonly installed in electrical panels in industrial, commercial, and sometimes residential settings. ACTOM Protection & Control has a wide range of Multifunction panel mount meters to match the abovementioned applications.

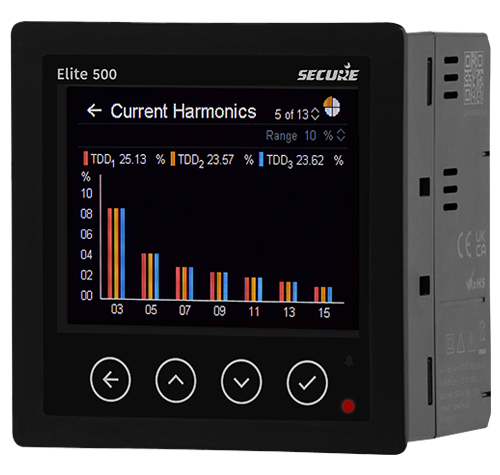

Elite 500

Elite 500 is a high-precision, multiple communication & multi-function meter which has advanced power monitoring functionality, making it a suitable instrument both as a standalone device and as part of BMS, process industrial controls and SCADA systems.

Enquire

The Elite 500 offers data logging, control IOs and modular communication with multiple protocols for third party system integration.

Protocols:

Modbus
BACnet
Profinet
IEC 61850

Applications:

LV/MV/HV Switchgear
Power plants
Feeder monitoring
Grid substations
Wind turbines
Renewables
Automation and system integration
Industrial and commercial premises

Key features:

Supports RS485 Modbus
Supports any Ethernet protocol
Class 0.2S / 0.5S accuracy for active measurements
Class 0.5S accuracy for reactive measurements
Power quality features which include:
- Individual harmonics
- Total Harmonic Distortion (THD)
- Sag
- Swell
- Voltage unbalance
- Interruption counter

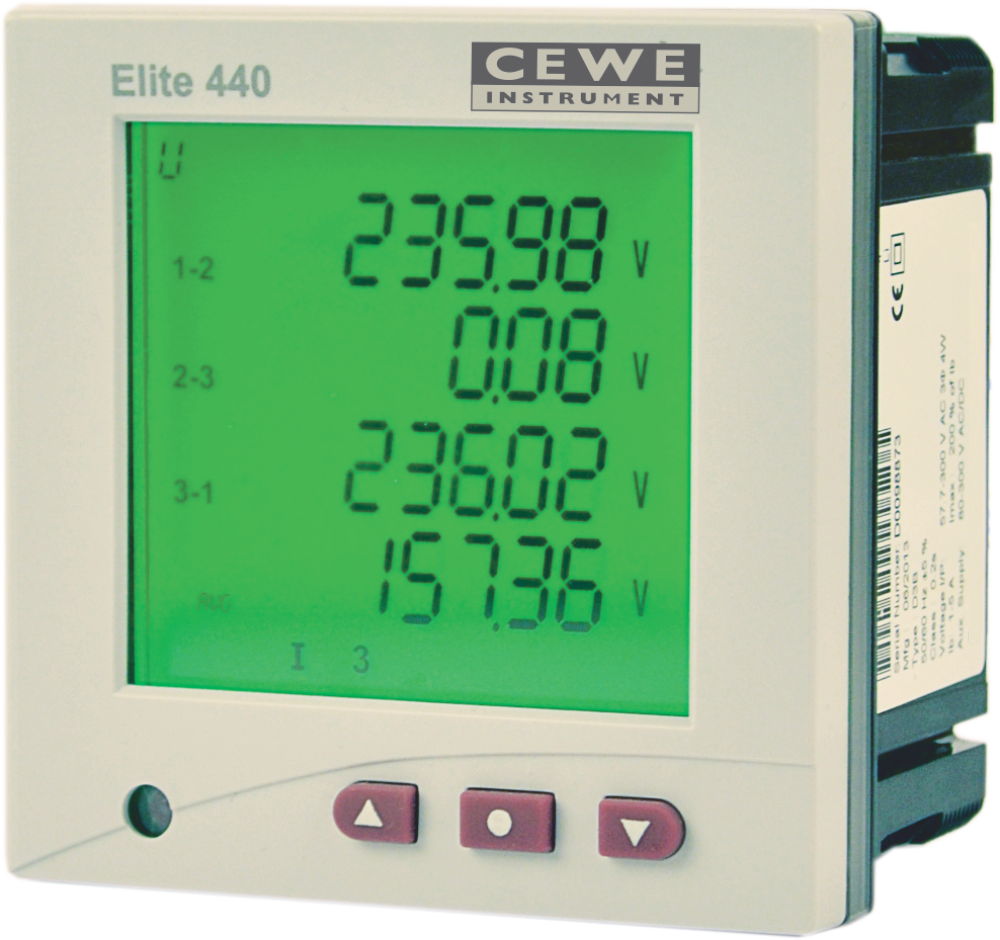

Elite 440

Elite 440 is a high accuracy, simple configurability and easy integration multi-line, three-phase digital panel meter for accurate and reliable measurement of electrical parameters (voltage, current, power, frequency, etc.).

Enquire

It is used for both industrial and commercial applications and features a large multi-line backlit LCD display that displays four parameters simultaneously. Modbus communication capability allows easy integration with energy monitoring systems. Expansion modules can be fitted for enhanced system integration (pulse inputs / outputs or analogue outputs and ethernet).

Applications:

LV/MV/HV Switchgear panels
Motor Control Centre (MCC) panels
Control and relay panels
Plant automation
Monitoring systems (SCADA/DAS)

Key features:

Easy interface with external devices through built-in Modbus (RS485/Ethernet)
Measurement selection (star or delta/3P 4W or 3P 3W)
Expansion capabilities via ad on modules for analogue outputs or pulse inputs/outputs and ethernet
Calibration LED for accuracy test on site
Class 0.5S and 1.0

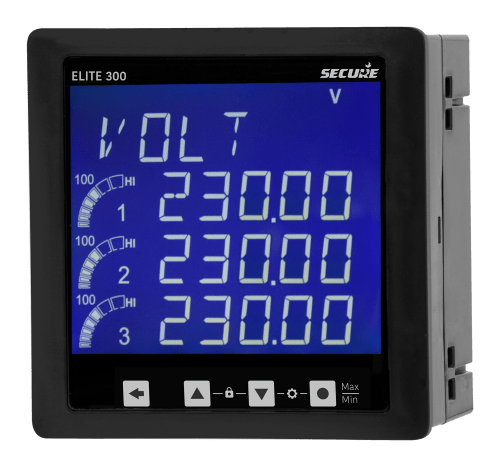

Elite 300

The Elite 300 series is a range of multi-line, three-phase digital panel meters for reliable and accurate true-RMS measurement of electrical parameters (voltage, current, power, frequency etc.)

Enquire

It is apt for industrial and commercial applications and is available with an LCD display, MODBUS communication, pulse output or alarm output available as an option.

Applications:

Automation and monitoring systems
LV distribution panels
Motor Control Centre (MCC) panels
MV/HV Switchgear panels
Building management and monitoring systems (BMS)

Key features:

On-site setup for wiring configuration (3P 3W/3P 4w)
Automatic unit scaling for voltage, current, power, and energy
Display of minimum and maximum values
Unique pass-through mechanism for current termination
True root-mean-squared (RMS) metering

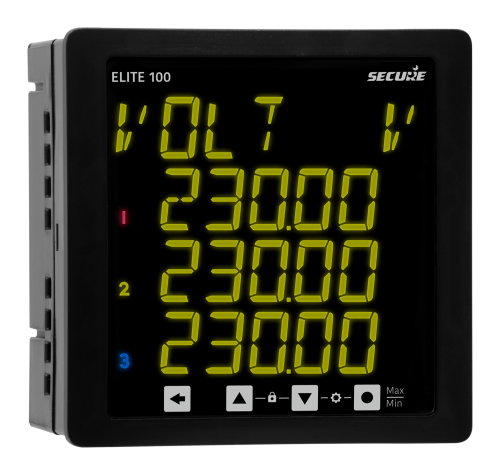

Elite 100

The Elite 100 series is a range of multi-line, three-phase digital panel meters for reliable and accurate true-RMS measurement of electrical parameters (voltage, current, power, frequency etc.)

Enquire

It is apt for industrial and commercial applications and is available with an LCD display, MODBUS communication, pulse output or alarm output available as an option.

Applications:

Automation and monitoring systems
LV distribution panels
Motor Control Centre (MCC) panels
MV/HV Switchgear panels
Building management and monitoring systems (BMS)

Key features:

On-site setup for wiring configuration (3P 3W/3P 4w)
Automatic unit scaling for voltage, current, power, and energy
Display of minimum and maximum values
Unique pass-through mechanism for current termination
True root-mean-squared (RMS) metering

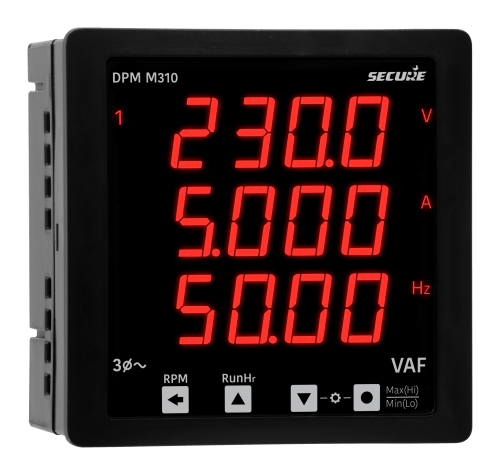

DPM

The range of simple digital panel meters (DPMs) is used for reliable and accurate measurement of both AC parameters (voltage, current, frequency, power, power factor and energy) and DC parameters (voltage and current).

Enquire
