KULT1
Bin Number: 450011E
Brand: Elmex

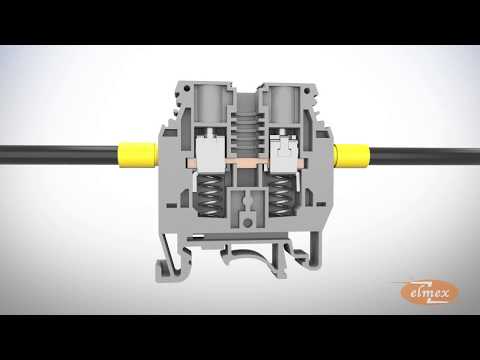

Test Disconnect Terminal Block – Screw Connection With Spring Support
R18.06 excl. VAT
23721 in stock
KULT1
Country of Origin: India
Category: Din-Rail Terminal Blocks
Type: Spring Loaded Terminal
Connection Method: Screw Connection with spring support
Voltage: 1000 V
Amperage: 57 A
Wire Size: 10,0 mm²
Standard Colour: Gray
Product Details:
Terminal Type – KULT1 , Spring loaded terminal block, nominal voltage: 1000 V, nominal current: 57 A, Rated cross-section – 10 mm² , connection method: Screw connection with spring support, number of connections: 2, cross-section: 1.5 mm² – 16 mm², AWG: 16- 6 , mounting type: TS 35/7.5,  TS 35/15 , TS 32 , colour: GREY
Technical Data
Additional Information
Height: 58,5 mm
Length: 52,0 mm
Width: 10,0 mm
No of Levels: 1
No of Connection: 2
Insulating Material: Polyamide 6,6
Insulating Material: Polyamide 6,6
Rated Surge Voltage: 8 V
Open Side Panel: Yes
Height With TS35 x 7.5mm: 59,6 mm
Height With TS32 x 15mm: 64,0 mm
Height With TS35 x 15mm: 67,0 mm
End Cover Width: 2,5 mm
Screw Thread: M4
Stripping Length: 12 mm
Tightening Torque Min: 1,2 N-m
Tightening Torque Max: 1,3 N-m
Connection In Accordance With Standard: IEC 60947-7-1
Degree Of Pollution: 3
Overvoltage Category: III
Conductor Cross Section Solid Min: 1,5 mm²
Conductor Cross Section Solid Max: 16,0 mm²
Conductor Cross Section AWG Min: 16
Conductor Cross Section AWG Max: 6
Conductor Cross Section Flexible Min: 1,5 mm²
Conductor Cross Section Flexible Max: 10,0 mm²
Min AWG Conductor Cross Section Flexible: 16
Max AWG Conductor Cross Section Flexible: 6
UL Specification
UL Standard: UL 1059
UL Nominal Voltage B: 600 V
UL Nominal Current B: 65 A
UL Wire Range Min B: 16
UL Wire Range Max B: 6
UL Nominal Voltage C: 0 V
UL Nominal Current C: 12:00 am
CSA Specifications
CSA Standard: CSA C22.2 NO 158
CSA Nominal Voltage B: 600 V
CSA Nominal Current B: 65 A
CSA Wire Range Min B: 16
CSA Wire Range Max B: 6
CSA Nominal Voltage C: 0 V
CSA Nominal Current C: 12:00 am
ATEX Specification
ATEX Standard: EN 60079-7
ATEX Nominal Voltage: 1000 V
ATEX Nominal Current: 57 A
ATEX Cross Section Solid Min: 1,5 mm²
ATEX Cross Section Solid Max: 16,0 mm²
ATEX Cross Section Flexible Min: 1,5 mm²
ATEX Cross Section Flexible Max: 10,0 mm²
Std Packing Unit: 100,00
Shipping Information
Weight of std Packing Unit: 2,70
Weight per Piece: 26,40
GTIN Number: 85389000
